Product Description

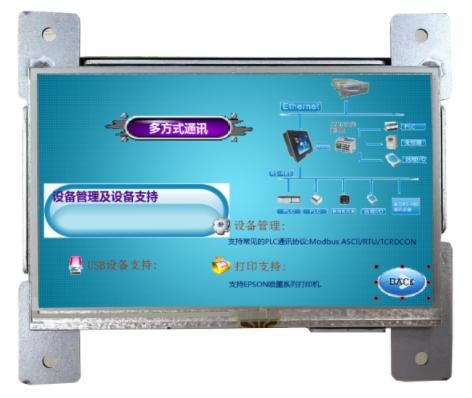

Resistive 4 Wire 5” Touch Screen Display Panel DC12V - DC 30V

HMIAT3050TSM is a high-performance embedded integrated human-computer interface based on the industrial-grade Cortex A7 (dual-core main frequency 1.2 Ghz) CPU. The product is designed with a 5-inch LED LCD display (resolution 800*480) and a four-wire resistive touch screen. Meanwhile, Lonkon industrial configuration software is pre-installed.

Specifications:

● LCD screen5-inch TFT LCD, LED backlight, color 65536 bits

● Resolution:800*480

● Display brightness:400cd/m2

● C P U:Cortex A7,dual core 1.2 Ghz

● Memory:128M SRAM

● Touch screen:Four wire resistive, click more than 1 million times

● Storage device:128M NAND FLASH

●Interface:1*RS232,2*RS485,1*LAN

●Product Size:W122mm×H107mm×D24.6mm

●Opening size:W109mm×H66mm

Product Performance:

Wuhan LongYu Intelligent Technology Co., Ltd is a high-tech enterprise integrating R&D, production and sales. It is located in the heart of China's Optics Valley - Gezhouba Sun City New Energy and Environmental Protection Industrial Park, Wuhan East Lake High-tech Zone. The company focuses on three core business areas: embedded intelligent HMI software and hardware, MES loT terminal display products, intelligent control equipment and distributed control solutions.

The company is ISO9001:2015 quality assurance certified, its products are CE, FCC and Rohs certified. With 9 invention patents, 24 design and appearance patents, 16 software copy-rights, the company was identified a national class high-tech enterprise in 2015, a software company by Hubei Provincial Economic and Information Commission in 2016. In 2018, the company was reconfirmed to be a national class high-and-new technology company.

There is a strong research and development, production, marketing and management team in Wuhan Longyu Intelligent Technology Co. Ltd. Relying on our independently developed embedded software and hardware technologies, we are working hard to help upgrading China’s manufacturing, our professional products and customized solutions have been put into beneficial use in electric power generation、 environment protection、new energy、medical equipment、coal mining、machinery and equipment、automation and other fields.
