Product Description

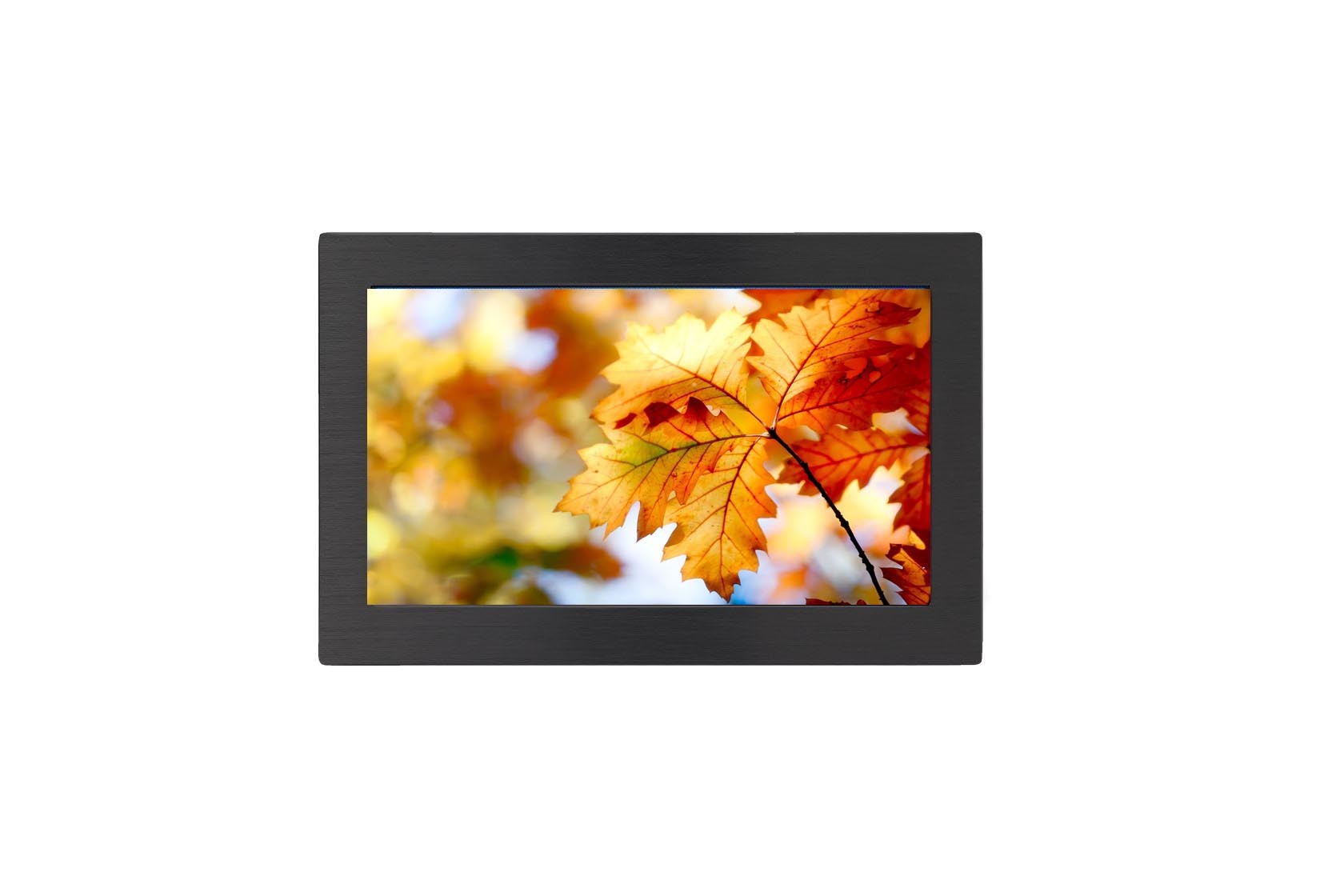

10.1 Inch Industrial Rugged Android 11.0 Tablet Resistive Touch Panel

LYA101G20C-W-BT is a high-performance embedded integrated touch screen with the industrial core core Micro RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 10.1-inch LED LCD display (resolution of 1280 * 800) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, man-machine interface, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.

Key Features:

Size:10.1 Inch

Resolving power:1920 * 1080

Touch form:4 wire resistance touch

Luminance:400 cd/ m²

Material quality:Plastic face frame, metal back cover

Way to stall:Flat, outer, embedded

Product size:260 * 178 * 41mm

Power interface:3 PIN*2.54mm terminal DC24V provides power supply

Working temperature:-10℃ ~ 60℃

Storage temperature:-20℃ ~ 70℃

Operating humidity:5-90 RH%

Product Performance

	Performance	Detail
System	CPU processor	RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
	Operating System	Android11.0
	Running memory	2GB/4GB
	EMMC	16GB/32GB/64GB/128GB
	GPU	Mali-G52 1-Core-2EE
Display	Size	10.1 Inch
	Resolving power	1920 * 1080
	Touch form	4 wire resistance touch
	Luminance	400 cd/ m²
	Angle of view	Full perspective
Material	Material quality	Plastic face frame, metal back cover
	Way to stall	Flat, outer, embedded
	Product size	260 * 178 * 41mm
	IP protection grade	Industrial grade IP65 dustproof and water proof (operating face)
Power	Power interface	3 PIN*2.54mm terminal DC24V provides power supply
	Power input	12-30V Recommended value of 24V
Environmental Characteristics	Working temperature	-10℃ ~ 60℃
	Storage temperature	-20℃ ~ 70℃
	Operating humidity	5-90 RH%

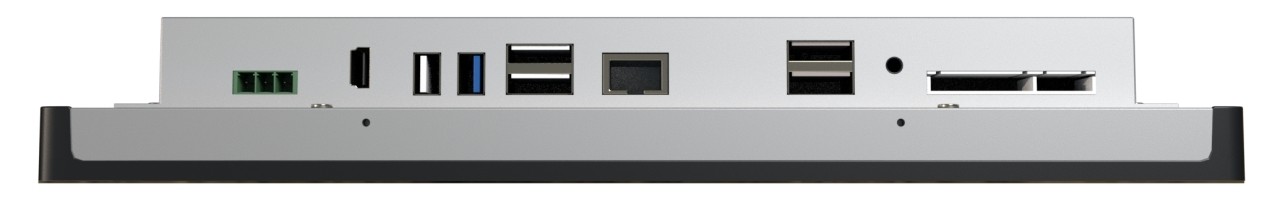

	Serial port	2 RS232,2 RS232 / RS485 switch; 6-Road TTL serial port (reuse with serial port)
	Audio interface	1-way MIC interface
	Gigabit Ethernet interface	1 Route 10 / 100 / 1000 Mbps Ethernet port
	HDMI interface	1-Way HDMI output, up to 3840 * 2160 resolution
	TF	1-Route TF card interface
	SIM card	1 Standard drawer-type interface with reserved eSIM interface
	RTC	1 Built-in supercapacitor
	WIFI/BT	2.4G WIFI / BT4.2
	4G interface	The GPS function 4G module should be replaced
	GPIO	4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V；
	USB2.0	1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
	USB3.0	1 Vertical USB 3.0 (switch through dial switch)
