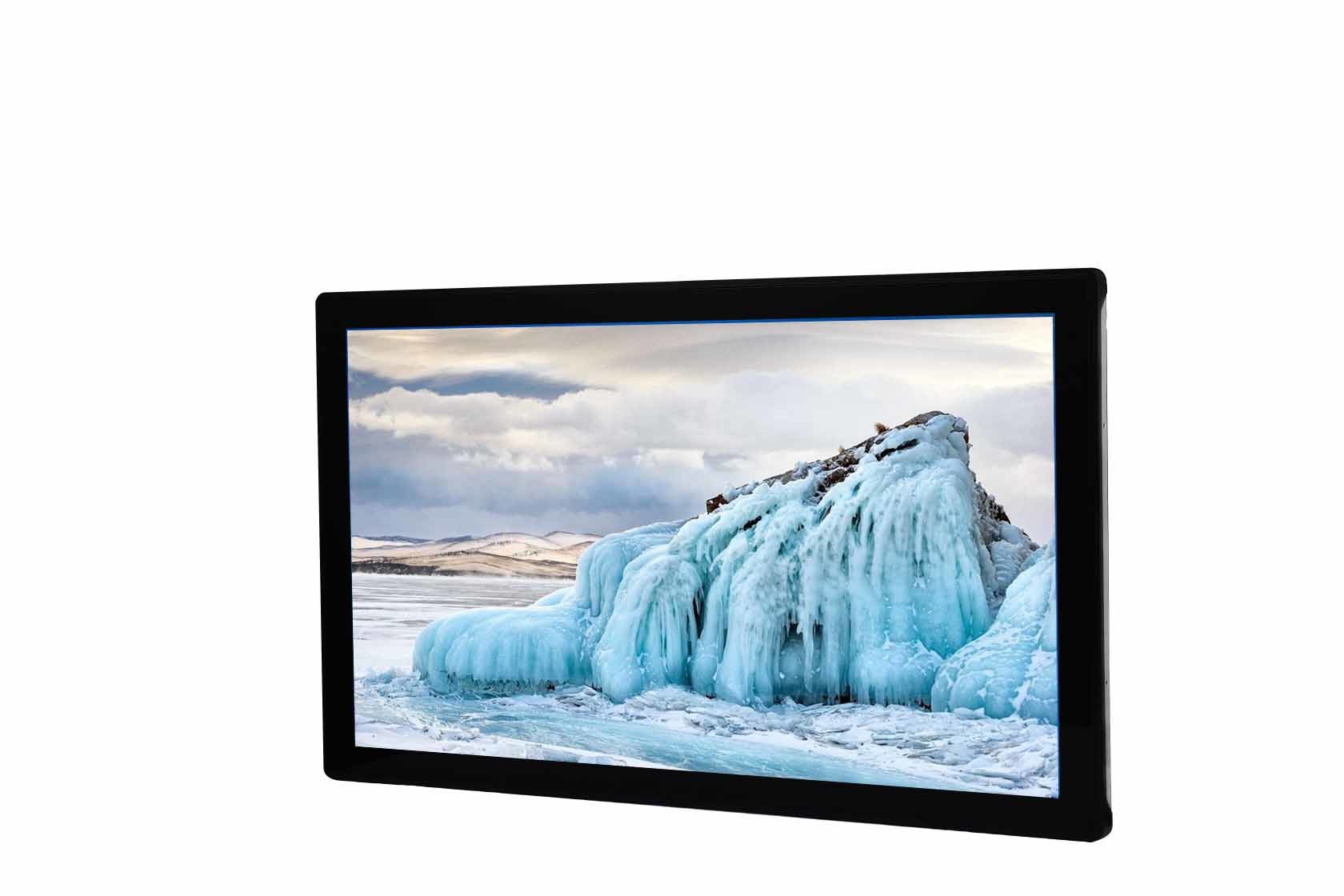

    Linux Capacitive Touch Screen LCD Panel Rk3568 RJ45 27 Inch Touch Tablet

    Ask Lasest Price
    Brand Name : LONGYU
    Model Number : LYX270K20C
    Certification : CE RoHS
    Price : TBA
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Work Days
    • Product Details
    • Company Profile

    Linux Capacitive Touch Screen LCD Panel Rk3568 RJ45 27 Inch Touch Tablet

    Product Description

    Touch Tablet 27 Inch Linux Capacitive Touch Screen LCD Panel Rk3568 RJ45


    LYX236K20C is a high-performance embedded integrated touch screen with the industrial core core Micro RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 23.6-inch LED LCD display (resolution of 1920 * 1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, man-machine interface, small and medium-sized medical analyzer and other industry applications.


    Features:

    • High contrast color TFT LCD display supports resolution up to 1920*1080
    • RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
    • Linux 4.19/Android11.0/Ubuntu18.04/
    • Industrial grade IP65 dustproof and water proof (operating face)
    • 2 RS232,2 RS232 / RS485 switch;6-Road TTL serial port (reuse with serial port)
    • 1 Route 10 / 100 / 1000 Mbps Ethernet port
    • 12-30V Recommended value of 24V
    • Product size:662 * 401 * 46mm
    • Size:27 Inch
    • Resolving power:1920 * 1080
    • Touch form:Capactive 10 touch
    • Power interface:3 PIN*2.54mm terminal DC24V provides power supply
    • Power input:12-30V Recommended value of 24V
    • Working temperature:-10℃ ~ 60℃
    • Storage temperature:-20℃ ~ 70℃

    Product Performance:


    PerformanceDetail

    System


    CPU processorRK3568 / Cortex A55 4 core main frequency at 2.0GHZ
    Operating SystemAndroid11.0/Ubuntu18.04/Linux 4.19
    Running memory2GB/4GB
    EMMC16GB/32GB/64GB/128GB
    GPUMali-G52 1-Core-2EE

    Display

    Size27 Inch
    Resolving power1920 * 1080
    Touch formCapactive 10 touch
    Luminance300 cd/ m²(Select a 450cd / m² s)
    Angle of viewFull perspective

    Material

    Material qualityPlastic face frame, metal back cover
    Way to stallFlat, outer, embedded
    Product size662 * 401 * 46mm
    IP protection gradeIndustrial grade IP65 dustproof and water proof (operating face)

    Power

    Power interface3 PIN*2.54mm terminal DC24V provides power supply
    Power input12-30V Recommended value of 24V

    Environmental Characteristics


    Working temperature-10℃ ~ 60℃
    Storage temperature-20℃ ~ 70℃
    Operating humidity5-90 RH%
    Serial port

    2 RS232,2 RS232 / RS485 switch;

    6-way TTL serial port (reuse with serial port)

    Audio interface1-way MIC interface
    Gigabit Ethernet interface1 Route 10 / 100 / 1000 Mbps Ethernet port
    HDMI interface1-Way HDMI output, up to 3840 * 2160 resolution
    TF1-Route TF card interface
    SIM card1 Standard drawer-type interface with reserved eSIM interface
    RTC1 Built-in supercapacitor
    WIFI/BT2.4G WIFI / BT4.2
    GPSThe GPS function 4G module should be replaced
    4GExpand the miniPCIE 4G module
    GPIO4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V;
    USB2.01 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
    USB3.01 Vertical USB 3.0 (switch through dial switch)

    Application:
    • Industial automation
    • Intelligent forklift application
    • Tower crane monitor
    • Toll gate
    • Smart medicine
    • Car Compass
    • Smart storage
    • Recreational machines
    Linux Capacitive Touch Screen LCD Panel Rk3568 RJ45 27 Inch Touch Tablet
