OEM / ODM IP65 Industrial PC Embedded IPS Android Tablet 1280*1080

Ask Lasest Price
Brand Name :	LONGYU
Model Number :	LYA101K20S-W
Certification :	CE RoHS
Price :	TBA
Payment Terms :	T/T, Western Union，Paypal
Supply Ability :	10000PCS/Month
Delivery Time :	7-10 Work Days

Add to Cart

Product Details
Company Profile

OEM / ODM IP65 Industrial PC Embedded IPS Android Tablet 1280*1080

Product Description

1280*1080 PC IPS Industrial Android Tablet ODM and OEM Tablet for industry applications

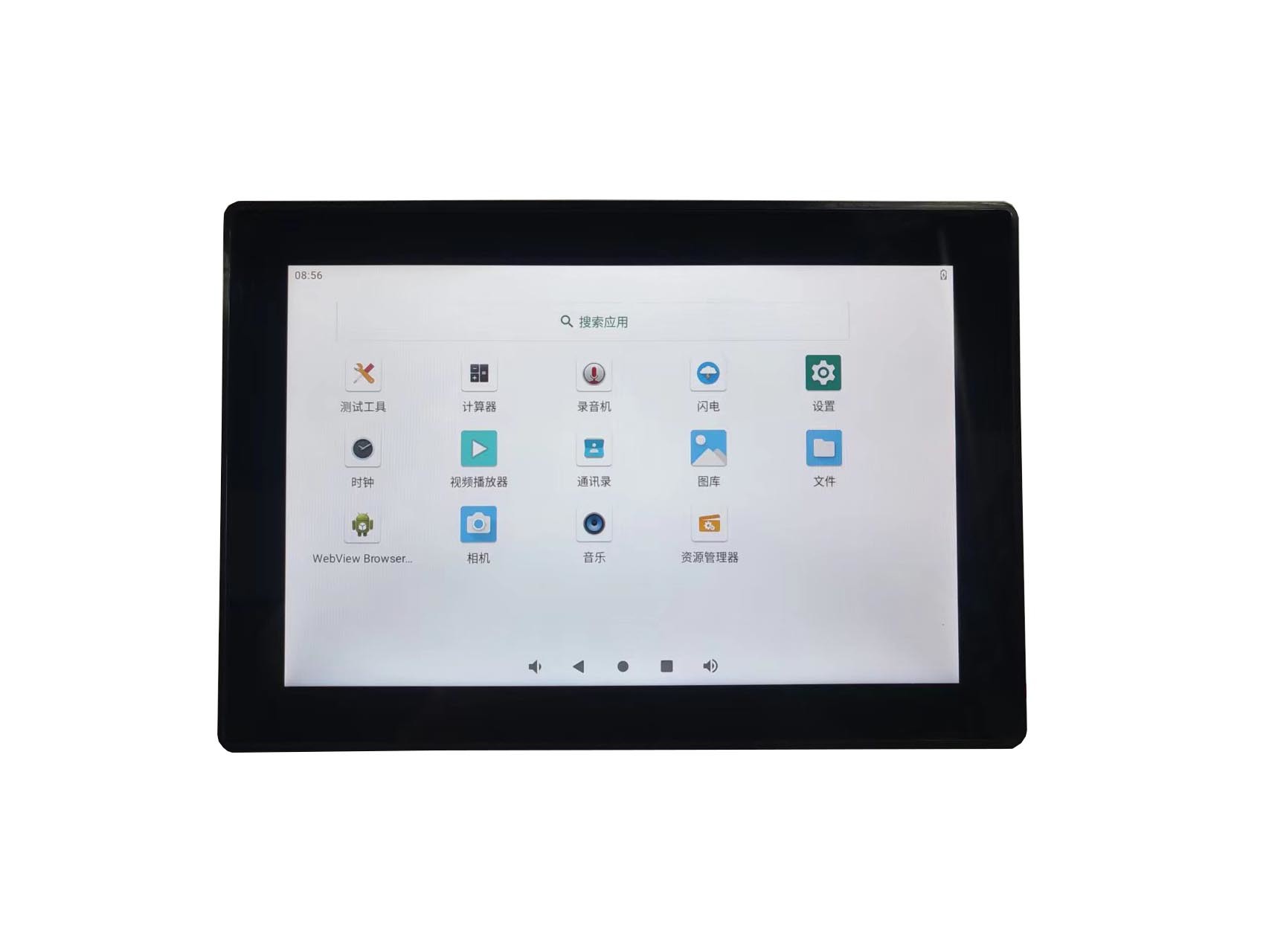

LYA101K20S-W is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 10.1-inch LED LCD display (resolution 1280*1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.

Product Performance

	Performance	Detail
System	CPU processor	RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
	Operating System	Android11.0/Ubuntu18.04/Linux 4.19
	Running memory	2GB/4GB
	EMMC	16GB/32GB/64GB/128GB
	GPU	Mali-G52 1-Core-2EE
Display	Size	10.1 Inch
	Resolving power	1280*800
	Touch form	Capactive 10 touch
	Luminance	350 cd/ m²
	Angle of view	Full perspective
Material	Material quality	Plastic face frame, metal back cover
	Way to stall	Flat, outer, embedded
	IP protection grade	Industrial grade IP65 dustproof and water proof (operating face)
Power	Power interface	3 PIN*2.54mm terminal DC24V provides power supply
Power	Power input	12-30V Recommended value of 24V
Environmental Characteristics	Working temperature	-10℃ ~ 60℃
	Storage temperature	-20℃ ~ 70℃
	Operating humidity	5-90 RH%
	Serial port	2 RS232,2 RS485 / 2 CAN switch;
	Audio interface	Built-in 1 way 8 euro 5W dual channel speaker output; One 3.5mm audio output and one 3.5mm microphone input
	Gigabit Ethernet interface	1 Route 10 / 100 / 1000 Mbps Ethernet port
	HDMI interface	1-Way HDMI output
	TF	1-Route TF card interface
	SIM card	1 Standard drawer-type interface with reserved eSIM interface
	RTC	1 Built-in supercapacitor
	WIFI/BT	2.4G WIFI / BT4.2
	4G interface	The GPS function 4G module should be replaced
	GPIO	4-way GPIO
	USB2.0	3*USB 2.0
	USB3.0	1 Vertical USB 3.0 (switch through dial switch)

Warranty Instruction

Our company will provide you the following services with this card and invoice (or copy) in accordance with the provisions listed in this warranty card:

The machine is guaranteed for three years. Free warranty for the first year; Only the cost fee will be charged in the second and third years, and the service fee will be charged after three years
The warranty period starts from the date of invoice
Please keep this warranty card and invoice (or copy) properly. You can enjoy warranty service only if you show them together during the period
During the warranty period, failure occurs due to the following conditions:, We will charge a certain fee at its discretion:

Company introduction

Wuhan Longyu Intelligent Technology Co., Ltd has a strong R & D, production, sales and management team. Relying on independently developed embedded computer software system and hardware platform technology, we have carefully developed a series of products, the main products include: man-machine interface touch screen, industrial tablet computer all-in-one, ARM industrial motherboard, industrial display, etc. We strive to promote the upgrading of China's manufacturing industry, the research and development of products are widely used in intelligent transportation, automation equipment, terminal self-help equipment, industrial control, electric power, military industry, finance, network security, Marine manufacturing, medical instruments, numerical control, instrumentation, scientific research and other industries, with many well-known enterprises at home and abroad to maintain long-term stable cooperation.
