HMI Touch Pc Tablet Industrial Wall Mount Android Tablet Poe RoHS

Product Description

Android Wall Mount Industrial Grade Poe Touch Pc Tablet Android 15.6 Inch

LYA156K20C-BT is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 15.6-inch LED LCD display (resolution 1920 * 1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.

Product Feature

Product Performance

	Performance	Detail
System	CPU processor	RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
	Operating System	Android11.0/Ubuntu18.04/Linux 4.19
	Running memory	2GB/4GB
	EMMC	16GB/32GB/64GB/128GB
	GPU	Mali-G52 1-Core-2EE
Display	Size	15.6 Inch
	Resolving power	1920 * 1080
	Touch form	Capactive 10 touch
	Luminance	300 cd/ m²
	Angle of view	Full perspective
Material	Material quality	Plastic face frame, metal back cover
	Way to stall	Flat, outer, embedded

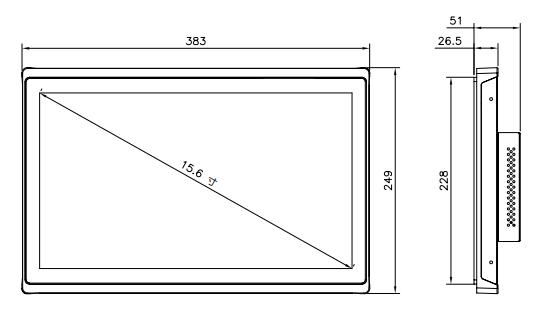

	Product size	383 * 249 * 51mm
	IP protection grade	Industrial grade IP65 (operating face)
Power	Power interface	3 PIN*2.54mm terminal DC24V provides power supply
Power	Power input	12V-30V(Recommended value 24V)
Environmental Characteristics	Working temperature	-10℃ ~ 60℃
	Storage temperature	-20℃ ~ 70℃
	Operating humidity	5-90 RH%
	Serial port	2 RS232,2 RS232 / RS485 switch; 6-way TTL serial port (reuse with serial port)
	Audio Interface	1-way MIC interface
	LAN	1 Route 10 / 100 / 1000 Mbps Ethernet port
	HDMI interface	1-Way HDMI output, up to 3840 * 2160 resolution
	TF	1-Route TF card interface
	SIM card	1 Standard drawer-type interface with reserved eSIM interface
	RTC	1 Built-in supercapacitor
	WIFI/BT	2.4G WIFI / BT4.2
	GPS	The GPS function 4G module should be replaced
	4G	Expand the mini PCIE 4G module
	GPIO	4-way GPIO, IO direction is input and output configurable, IO level is 5.0V;
	USB2.0	1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
	USB3.0	1 Vertical USB 3.0 (switch through dial switch)

Warranty Instruction

Our company will provide you the following services with this card and invoice (or copy) in accordance with the provisions listed in this warranty card:

The machine is guaranteed for three years. Free warranty for the first year; Only the cost fee will be charged in the second and third years, and the service fee will be charged after three years
The warranty period starts from the date of invoice
Please keep this warranty card and invoice (or copy) properly. You can enjoy warranty service only if you show them together during the period
During the warranty period, failure occurs due to the following conditions:, We will charge a certain fee at its discretion:
