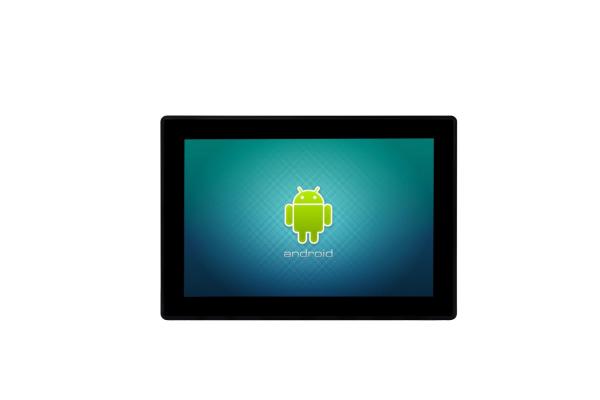

Dustproof Industrial Android Tablet / Waterproof Tablet IP65

Ask Lasest Price
Brand Name :	LONGYU
Model Number :	LYA101K20C-W
Certification :	CE RoHS
Price :	TBA
Payment Terms :	T/T, Western Union，Paypal
Supply Ability :	10000PCS/Month
Delivery Time :	7-10 Work Days

Add to Cart

Product Details
Company Profile

Dustproof Industrial Android Tablet / Waterproof Tablet IP65

Product Description

Industrial Waterproof Tablet 10.1 Inch Android IP65 For Harsh Environments

LYA101K20C-W is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 10.1-inch LED LCD display (resolution 1920 * 1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.

Key Features:

-- 10.1" Full HD 1280*800 resolution TFT LCD screen.

-- Integrated with RK3568 / Cortex A55 4 core main frequency at 2.0GHZ

-- 2GB/4GB

-- 16GB/32GB/64GB/128GB emmc.

-- 10 Points Capacitance Touch Screen

-- Plastic face frame, metal back cover

-- 260 * 178 * 41mm

-- Wide operational temperature range, -10°C to +60°C.

Product Performance

	Performance	Detail
System	CPU processor	RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
	Operating System	Android11.0/Ubuntu18.04/Linux 4.19
	Running memory	2GB/4GB
	EMMC	16GB/32GB/64GB/128GB
	GPU	Mali-G52 1-Core-2EE
Display	Size	10.1 Inch
	Resolving power	1920 * 1080
	Touch form	Capactive 10 touch
	Luminance	300 cd/ m²
	Angle of view	Full perspective
Material	Material quality	Plastic face frame, metal back cover
	Way to stall	Flat, outer, embedded
	Dimension	260 * 178 * 41mm
	IP protection grade	Industrial grade IP65 dustproof and water proof (operating face)
Power	Power interface	3 PIN*2.54mm terminal DC24V provides power supply
Power	Power input	12-30V Recommended value of 24V
Environmental Characteristics	Working temperature	-10℃ ~ 60℃
	Storage temperature	-20℃ ~ 70℃
	Operating humidity	5-90 RH%
	Serial port	2 RS232,2 RS232 / RS485 switch; 6-Road TTL serial port (reuse with serial port)
	Audio interface	1-way MIC interface
	Gigabit Ethernet interface	1 Route 10 / 100 / 1000 Mbps Ethernet port
	HDMI interface	1-Way HDMI output, up to 3840 * 2160 resolution
	TF	1-Route TF card interface
	SIM card	1 Standard drawer-type interface with reserved eSIM interface
	RTC	1 Built-in supercapacitor
	WIFI/BT	2.4G WIFI / BT4.2
	4G interface	The GPS function 4G module should be replaced
	GPIO interface	Expand the miniPCIE 4G module
	GPIO	4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V；
	USB2.0	1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
	USB3.0	1 Vertical USB 3.0 (switch through dial switch)
