PRODUCT DESCRIPTION

Wall-mounted Panel LCD Monitor Touch Screen 1024X 768 10.4 Inch Capacitive Touchscreen Monitor

PAL-104CHT is a set of low power consumption, multi-interface industrial display. This product is designed with 10.4-inch high brightness TFT LCD screen and capacitive touch screen.

FEATURES

Backlight technology:TFT LED

Visual Angle(H / V°):170/140

Backlight life(HRS):30,000 hrs

Luminance(cd/m²):350

Product size:10.4"

Display resolution:1024 x 768

Display color:16.7M or 256K Color

Power input:12 VDC @ 5A

Way to stall:Embedded, wall-mounted

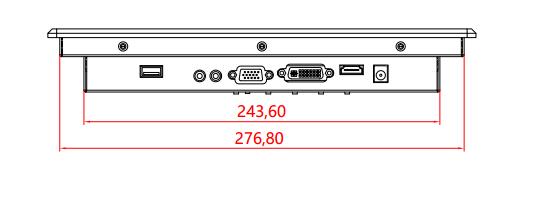

Dimension:293 x 222x 43.2mm

Hole size:278 x207mm

DisplayPort:1 X HDMI, 1 X DVI, 1 X VGA

Touch interface:USB

Working environment:-20 ~ 60° C

Storage environment:-20 ~ 70° C

Working humidity:5 ~ 85% @ 40°C (Non-condensing)

Vibration protection:5 ~ 500 Hz, 1 GRMS Random vibrations

SPECIFICATION

Company introduction

Wuhan Longyu Intelligent Technology Co., Ltd has a strong R & D, production, sales and management team. Relying on independently developed embedded computer software system and hardware platform technology, we have carefully developed a series of products, the main products include: man-machine interface touch screen, industrial tablet computer all-in-one, ARM industrial motherboard, industrial display, etc. We strive to promote the upgrading of China's manufacturing industry, the research and development of products are widely used in intelligent transportation, automation equipment, terminal self-help equipment, industrial control, electric power, military industry, finance, network security, Marine manufacturing, medical instruments, numerical control, instrumentation, scientific research and other industries, with many well-known enterprises at home and abroad to maintain long-term stable cooperation.

Wuhan LongYu Intelligent Technology Co., Ltd is a high-tech enterprise integrating R&D, production and sales. It is located in the heart of China's Optics Valley - Gezhouba Sun City New Energy and Environmental Protection Industrial Park, Wuhan East Lake High-tech Zone. The company focuses on three core business areas: embedded intelligent HMI software and hardware, MES loT terminal display products, intelligent control equipment and distributed control solutions.

The company is ISO9001:2015 quality assurance certified, its products are CE, FCC and Rohs certified. With 9 invention patents, 24 design and appearance patents, 16 software copy-rights, the company was identified a national class high-tech enterprise in 2015, a software company by Hubei Provincial Economic and Information Commission in 2016. In 2018, the company was reconfirmed to be a national class high-and-new technology company.

There is a strong research and development, production, marketing and management team in Wuhan Longyu Intelligent Technology Co. Ltd. Relying on our independently developed embedded software and hardware technologies, we are working hard to help upgrading China’s manufacturing, our professional products and customized solutions have been put into beneficial use in electric power generation、 environment protection、new energy、medical equipment、coal mining、machinery and equipment、automation and other fields.
