PRODUCT DESCRIPTION

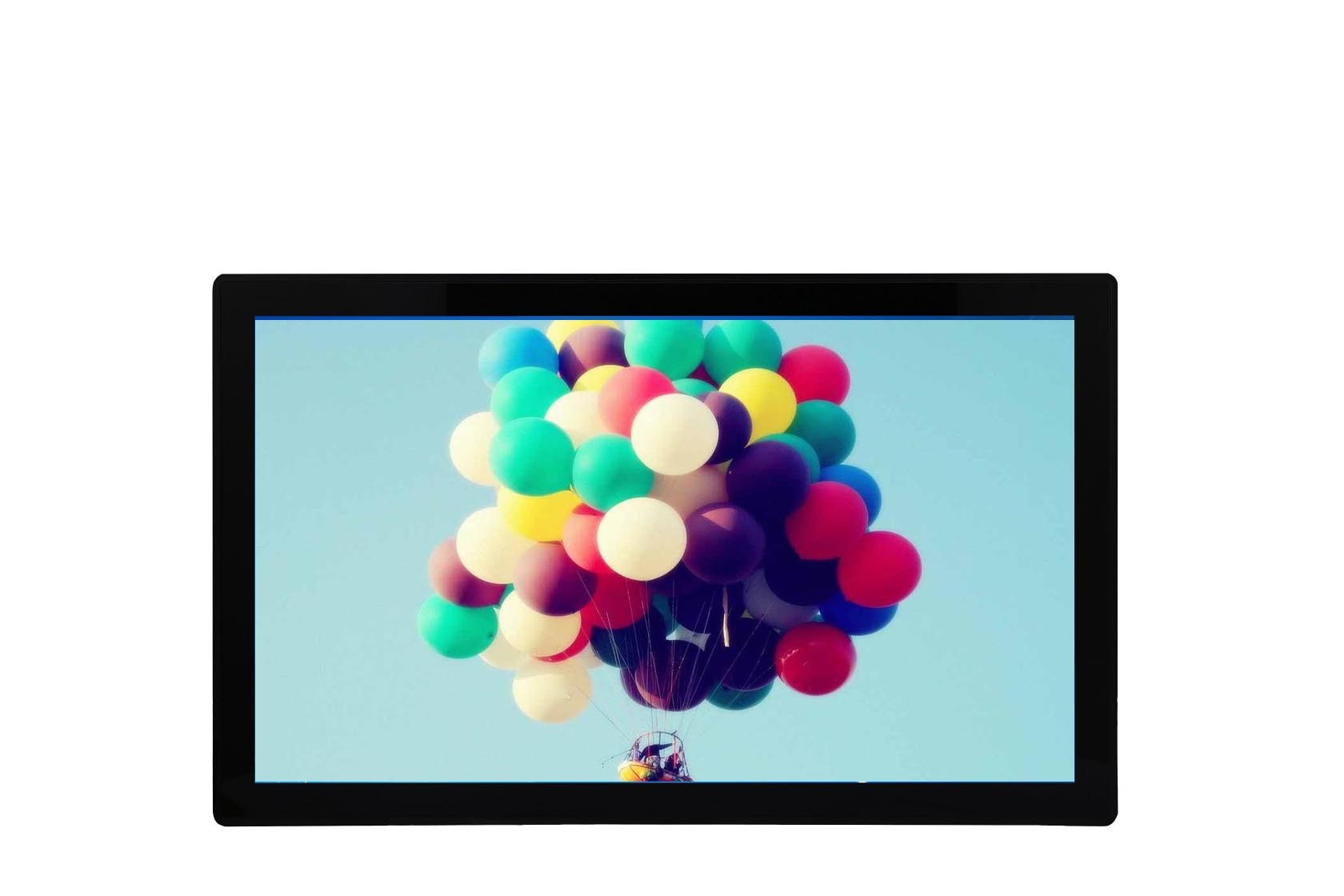

GTG Interactive LCD Touch Screen Monitors IPS Multitouch HDMI
Display
LY-A32 Monitor HD display color realistic, excellent workmanship,
quality assurance, simple wireless space saving, ergonomic design
is stable and reliable, intelligent touch operation is smooth
writing, touch software, widely used.
SPECIFICATION
Backlight technology:Led
Luminance:≥250 cd/m2
Contrast ratio:Horizontal: 178 / Vertical: 178
Response time:25ms(GTG)
Display color:16.7M Colors
Display resolution:1920x1080 (16:9)
Frequency of refresh:60Hz
Junctor:VGA / DVI / HDMI
Interlinkage:USB2.0(Type B socket)
Multitouch control protocol support:Windows
Dimension:780.2 x 474.8 x 54.5 mm
Opening size:772 x 467 mm
Power input:DC in: DC 12V3A (50/60 Hz)
Power:≤ 25W (typ.)
Standby power:≤ 2W (typ.)
Work environment:0 °C ~ 50 °C, 90% RH
Storage environment:-20 °C ~ 60 °C, 90% RH
Product Performance:
| |
| Backlight technology | Led |
| Luminance | ≥250 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 178 / Vertical: 178 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / DVI / HDMI |
| |
| OSD control | button |
| OSD language | English, Chinese |
| |
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
| |
| Dimension | 780.2 x 474.8 x 54.5 mm |
| Packing measurement | 820 x 570 x 150 mm |
| Weight (approx) | 8 kg / 10 kg |
| Wall hanging form | VESA,MIS-E,C |
| |
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | N |
| |
| Work environment | 0 °C ~ 50 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
| |
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
| |
