PRODUCT DESCRIPTION

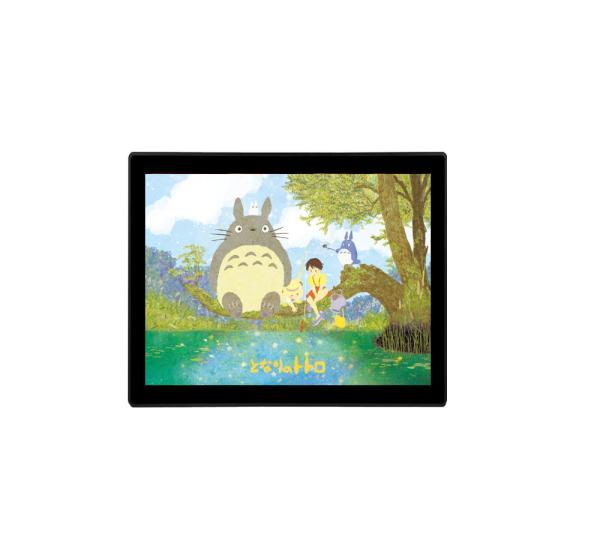

19 inch Industrial Monitor with DC 12V3A input Waterproof LCD Monitor

Touch screen parameters
Glass:3mm black screen screen tempered glass
Touch point number:10
Touch technology:Projective capacitor (G + G)
Waterproof performance:Touch surface is not affected by water droplets or water vapor
External dimensions:465 x 285.5 x 42.5 mm
Open hole dimensions:522x 313.5mm
Power input:DC in: DC 12V3A (50/60 Hz)
Power:≤ 20W (typ.)
Working environment:0 °C ~ 50 °C, 90% RH
Storage environment:-20 °C ~ 60 °C, 90% RH

Backlight technology:Led
Luminance:250 cd/m²
Contrast ratio:3000:1
Visual Angle:Horizontal: 178 / Vertical: 178
Response time:25ms(GTG)
Display color:16.7M Colors
Display resolution:1280x1024 (16:9)
Frequency of refresh:60Hz
Input resolution:1280x1024 @ 60Hz

Accessories:
1 x Home AC Adapter
1 x Remote Controller
1 x SKS Cable
1 x VGA & USB Cable
1 x Operation Manual
1 x YPbPr Video Input Cable(optional)
1 x Touch Drive Disk(touch for optional)
1 x Touch Pen(touch for optional)

SPECIFICATION

Product Application:

CNC Machine Tools

Bank self-service Terminal

Automated Industry

Medical Industry

Self-service Terminal

Security Monitoring

Wuhan LongYu Intelligent Technology Co., Ltd is a high-tech enterprise integrating R&D, production and sales. It is located in the heart of China's Optics Valley - Gezhouba Sun City New Energy and Environmental Protection Industrial Park, Wuhan East Lake High-tech Zone. The company focuses on three core business areas: embedded intelligent HMI software and hardware, MES loT terminal display products, intelligent control equipment and distributed control solutions.

The company is ISO9001:2015 quality assurance certified, its products are CE, FCC and Rohs certified. With 9 invention patents, 24 design and appearance patents, 16 software copy-rights, the company was identified a national class high-tech enterprise in 2015, a software company by Hubei Provincial Economic and Information Commission in 2016. In 2018, the company was reconfirmed to be a national class high-and-new technology company.

There is a strong research and development, production, marketing and management team in Wuhan Longyu Intelligent Technology Co. Ltd. Relying on our independently developed embedded software and hardware technologies, we are working hard to help upgrading China’s manufacturing, our professional products and customized solutions have been put into beneficial use in electric power generation、 environment protection、new energy、medical equipment、coal mining、machinery and equipment、automation and other fields.
