Product Description

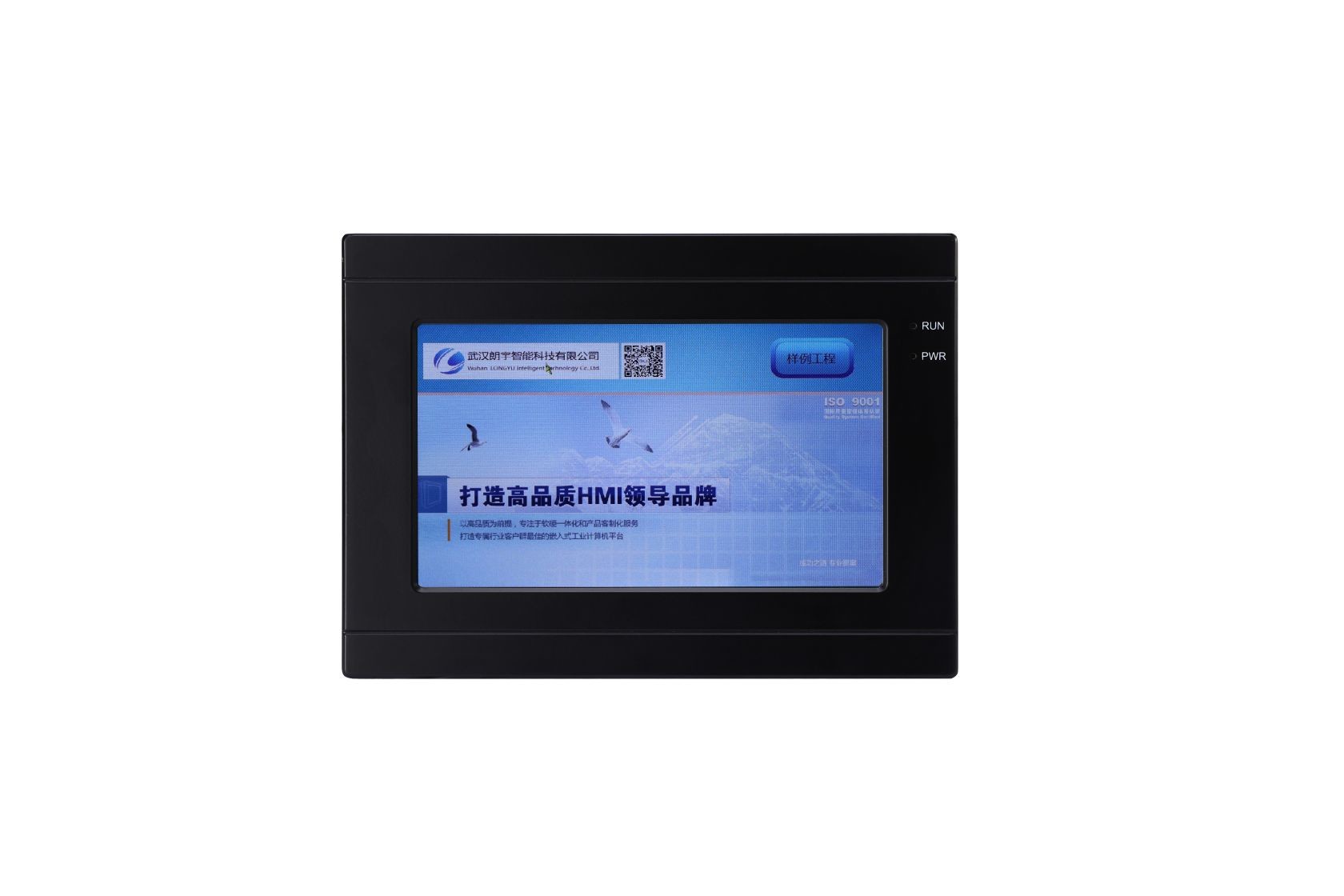

Industrial Waterproof IP65 7 Inch resistive Multi Touch LCD HMI Panel

HMIAT8070 is a high-performance embedded integrated man-machine interface with industrial-grade Quan Zhi T3 Cortex A7 quad-core 1.2G CPU as the core. This product is a 7-inch man-machine interface product designed with 100% domestic devices. It adopts a 7-inch bright LED liquid crystal display (resolution 800*480) and a four-wire resistive touch screen. At the same time, Lonkon industrial configuration software is pre-installed.

Specifications:

• LCD screen:7-inch TFT LCD, LED backlight, color 65536 bits
• Resolution:800*480
• Display brightness:1000cd/m2
• C P U:Cortex-A7 four core 1.2G
• Touch screen:Four wire resistive, click more than 1 million times

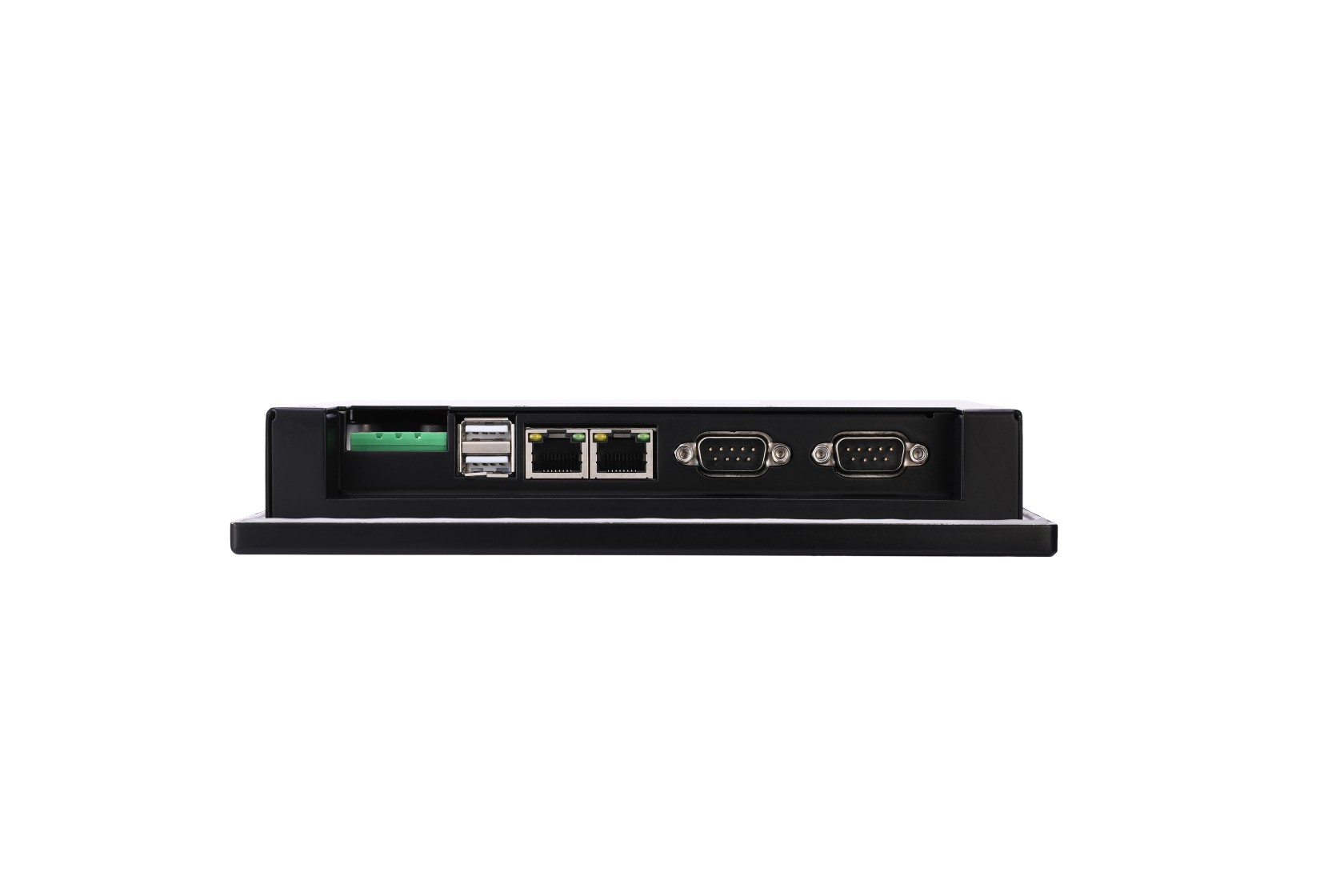

• Interface:1*RS232,3*RS485(2*CAN for Selectable ),2*Lan
• Extension interface:2*USB 2.0
• Input voltage:9V to 36V Wide range input voltage
• Product Size:W206mm×H148mm×D36mm
• Opening size:W191mm×H132.6 mm

Product Performance:

Wuhan LongYu Intelligent Technology Co., Ltd is a high-tech enterprise integrating R&D, production and sales. It is located in the heart of China's Optics Valley - Gezhouba Sun City New Energy and Environmental Protection Industrial Park, Wuhan East Lake High-tech Zone. The company focuses on three core business areas: embedded intelligent HMI software and hardware, MES loT terminal display products, intelligent control equipment and distributed control solutions.

The company is ISO9001:2015 quality assurance certified, its products are CE, FCC and Rohs certified. With 9 invention patents, 24 design and appearance patents, 16 software copy-rights, the company was identified a national class high-tech enterprise in 2015, a software company by Hubei Provincial Economic and Information Commission in 2016. In 2018, the company was reconfirmed to be a national class high-and-new technology company.

There is a strong research and development, production, marketing and management team in Wuhan Longyu Intelligent Technology Co. Ltd. Relying on our independently developed embedded software and hardware technologies, we are working hard to help upgrading China’s manufacturing, our professional products and customized solutions have been put into beneficial use in electric power generation、 environment protection、new energy、medical equipment、coal mining、machinery and equipment、automation and other fields.
