Product Description

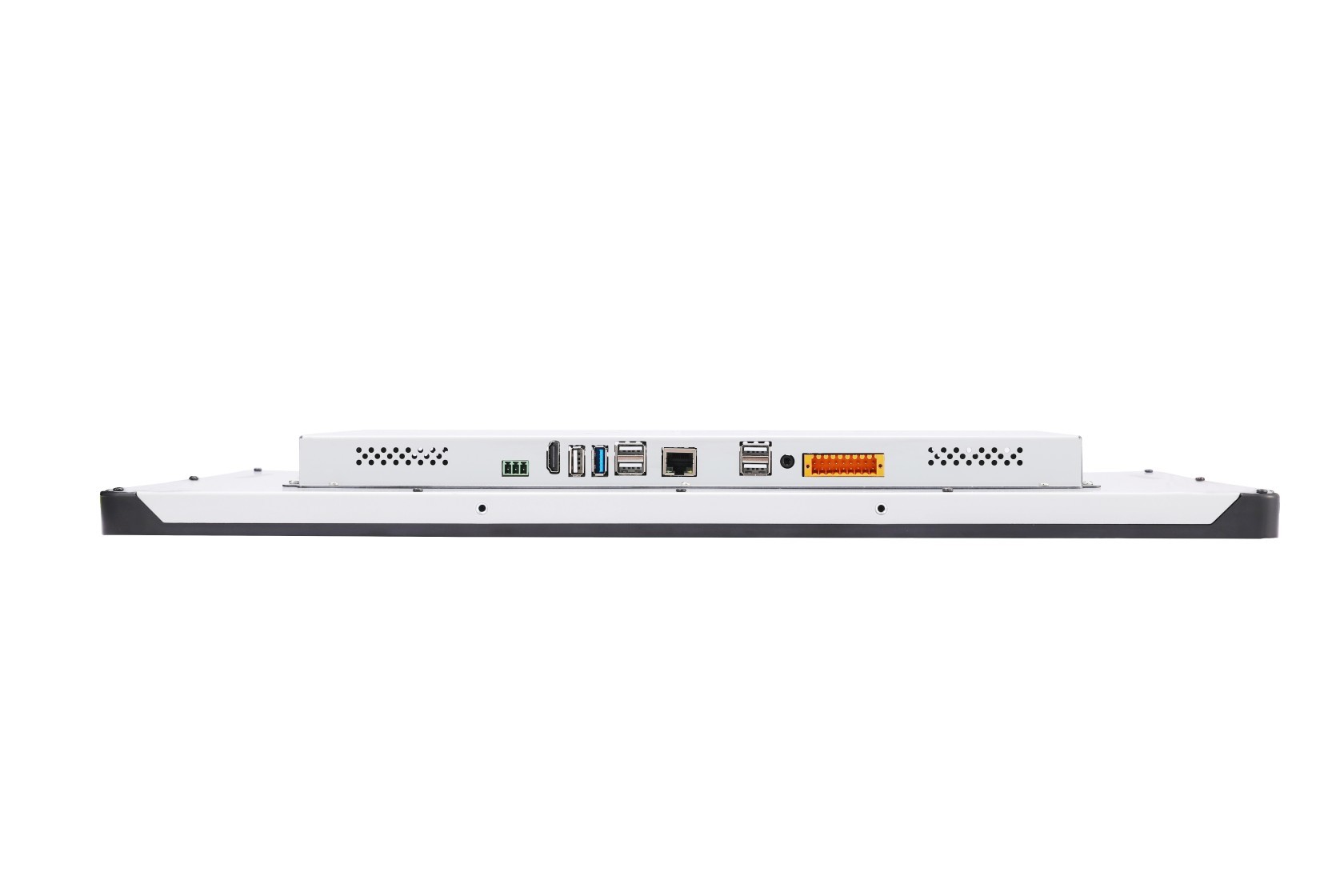

32-Inch Capacitive Touch Industrial Display Metal Case Embedded LCD
Android Industrial Monitor
LYA320K30C is a high-performance embedded integrated touch screen with the
industrial core core Micro RK3568 (RK3588/ Cortex 4 core A76 + 4
core A55 2.4GHZ) CPU as the core. The product features a
high-resolution 23.6-inch LED LCD display (resolution of 1920 *
1080) and a 10-point capacitive touch screen. It supports USB,
Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It
is suitable for industrial automation control, man-machine
interface, small and medium-sized medical analyzer and other
industry applications. Built-alone 0.8T NPU can be used for
lightweight AI applications.
CPU processor:RK3588/ Cortex 4 core A76 + 4 core A55 2.4GHZ
Operating System:Android12.0
Running memory:8GB
EMMC:64GB
GPU:Mali-G52 1-Core-2EE
Size:32 Inch
Resolving power:1920 * 1080
Touch form:Capactive 10 touch
Luminance:300 cd/ m²(Select a 450cd / m² s)
Angle of view:Full perspective
Material quality:Plastic face frame, metal back cover
Way to stall:Flat, outer, embedded
Dimension:780.2*474.8*465.6mm
IP protection grade:Industrial grade IP65 dustproof and water proof
(operating face)
Working temperature:-10℃ ~ 60℃
Storage temperature:-20℃ ~ 70℃
Product Performance:
| Performance | Detail |
System
| CPU processor | RK3588/ Cortex 4 core A76 + 4 core A55 2.4GHZ |
| Operating System | Android12.0 |
| Running memory | 8GB |
| EMMC | 64GB |
| GPU | Mali-G52 1-Core-2EE |
Display | Size | 32 Inch |
| Resolving power | 1920 * 1080 |
| Touch form | Capactive 10 touch |
| Luminance | 300 cd/ m²(Select a 450cd / m² s) |
| Angle of view | Full perspective |
Material | Material quality | Plastic face frame, metal back cover |
| Way to stall | Flat, outer, embedded |
| Dimension | 780.2*474.8*465.6mm |
| IP protection grade | Industrial grade IP65 dustproof and water proof (operating face) |
Power | Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12-30V Recommended value of 24V |
Environmental Characteristics
| Working temperature | -10℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ |
| Operating humidity | 5-90 RH% |
| Serial port | 2 RS232,2 RS485 |
| Audio interface | 1-way MIC interface |
| Gigabit Ethernet interface | 2 Route 10 / 100 / 1000 Mbps Ethernet port |
| HDMI interface | 1-Way HDMI output, up to 4k resolution 2-Way HDMI output,up to 8k resolution |
| TF | 1-Route TF card interface |
| SIM card | 1 Standard drawer-type interface with reserved eSIM interface |
| RTC | 1 Built-in supercapacitor |
| WIFI/BT | 2.4G WIFI / BT4.2 |
| GPS | The GPS function 4G module should be replaced |
| 4G | Expand the miniPCIE 4G module |
| GPIO | 4-way GPIO, IO direction is input and output configurable, and IO
level is 5.0V； |
| USB2.0 | 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB
2.0,1 built-in row pin (USB 2.0) |
| USB3.0 | 1 Vertical USB 3.0 (switch through dial switch) |
Company introduction
Wuhan Longyu Intelligent Technology Co., LTD. (referred to as
"Longyu Intelligent") is a high-tech enterprise focusing on
industrial automation touch display products, research and
development, production, sales in one. It is headquartered in
Optics Valley, China. Wuhan East Lake New Technology Development
Zone New energy and environmental protection industry base Gezhouba
Sun City Industrial Park. After years of experience accumulation in
the automatic control industry, the company fully understands the
application of automatic control technology, in-depth study of the
development prospects in the field of automatic control,
integration of multi-industry resources, integration of advanced
industrial computer technology, open up new ideas of automatic
control technology, in the development and production of automatic
control and embedded computer system has made a huge breakthrough.
Become a strong brand company in the field, quickly become a leader
in the field of automatic control, products sold at home and
abroad.
