Product Description

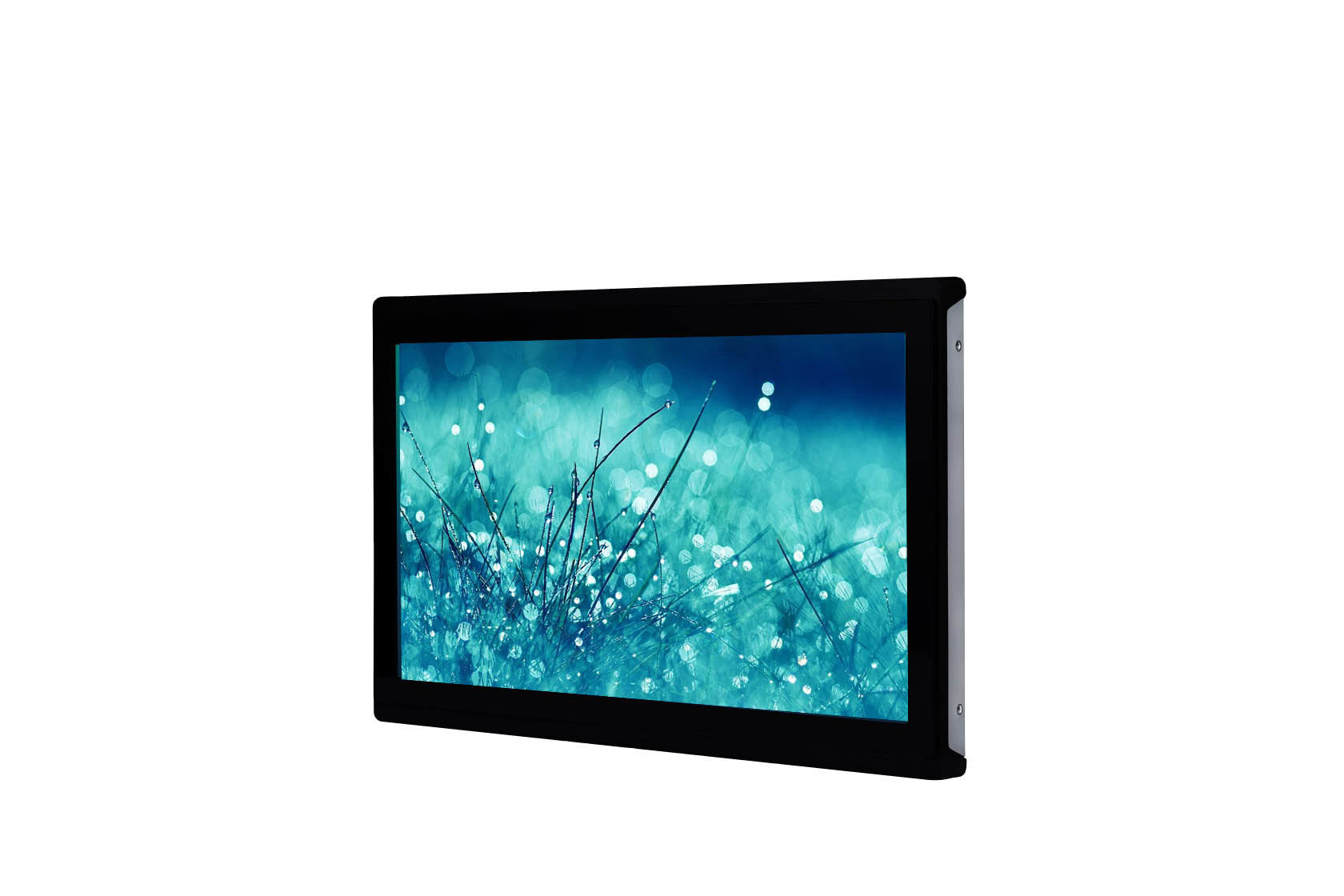

Android Touch Screen Monitors Capacitive Touch Panel 15 inch
waterproof industrial panel PC
LYA150K20I -W is a high-performance embedded integrated touch screen with the
industrial core core Micro RK3568 (quad-core A55 main frequency 2.0
Ghz) CPU as the core. The product features a high-resolution
15.0-inch LED LCD display (resolution 1024 * 768) and a 10-point
capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232,
RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial
automation control, man-machine interface, small and medium-sized
medical analyzer and other industry applications.
Size:15 Inch
Resolving power:1024 * 768
Touch form:Capactive 10 touch
Luminance:300 cd/ m²(Select a 450cd / m² s)
Angle of view:Full perspective
Material quality:Plastic face frame, metal back cover
Way to stall:Flat, outer, embedded
IP protection grade:Industrial grade IP65 dustproof and water proof
(operating face)
Serial port:3 RS232,2 RS232 / RS485 / CAN switch;6-way TTL serial
port (reuse with serial port)
Audio interface:The 1-way MIC interface
Gigabit Ethernet interface:3 PIN*2.54mm terminal DC24V provides
power supply
HDMI interface:1-Way HDMI output, up to 3840 * 2160 resolution
Product Performance
| Performance | Detail |
System
| CPU processor | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| Operating System | Android11.0/Ubuntu18.04/Linux 4.19 |
| Running memory | 2GB/4GB |
| EMMC | 16GB/32GB/64GB/128GB |
| GPU | Mali-G52 1-Core-2EE |
Display
| Dimension | 15 Inch |
| Resolving power | 1024 * 768 |
| Touch form | Capactive 10 touch |
| Luminance | 300 cd/ m²(Select a 450cd / m² s) |
| Size | 352 * 276 * 47mm |
| Angle of view | Full perspective |
Material
| Material quality | Plastic face frame, metal back cover |
| Way to stall | Flat, outer, embedded |
| IP protection grade | Industrial grade IP65 dustproof and water proof (operating face) |
Power
| Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12-30V Recommended value of 24V |
Environmental Characteristics
| Working temperature | -10℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ |
| Operating humidity | 5-90 RH% |
| Serial port | 3 RS232,2 RS232 / RS485 / CAN switch; 6-way TTL serial port (reuse with serial port) |
| Audio interface | The 1-way MIC interface |
| Gigabit Ethernet interface | 1 Route 10 / 100 / 1000 Mbps Ethernet port |
| HDMI interface | 1-Way HDMI output, up to 3840 * 2160 resolution |
| TF | 1-Route TF card interface |
| SIM card | 1 Standard drawer-type interface with reserved eSIM interface |
| RTC | 1 Built-in supercapacitor |
| WIFI/BT | 2.4G WIFI / BT4.2 |
| 4G interface | The GPS function 4G module should be replaced |
| GPIO interface | Expand the miniPCIE 4G module |
| GPIO | 4 input and output: 2 optical coupling input, 2 relay dry contact
output; |
| USB2.0 | 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB
2.0,1 built-in row pin (USB 2.0) |
| USB3.0 | 1 Vertical USB 3.0 (switch through dial switch) |
