Product Description
Industrial Medical IP65 Waterproof Wall Embedded Touch Square
Screen Panel PC Table True Flatips Fanless PC

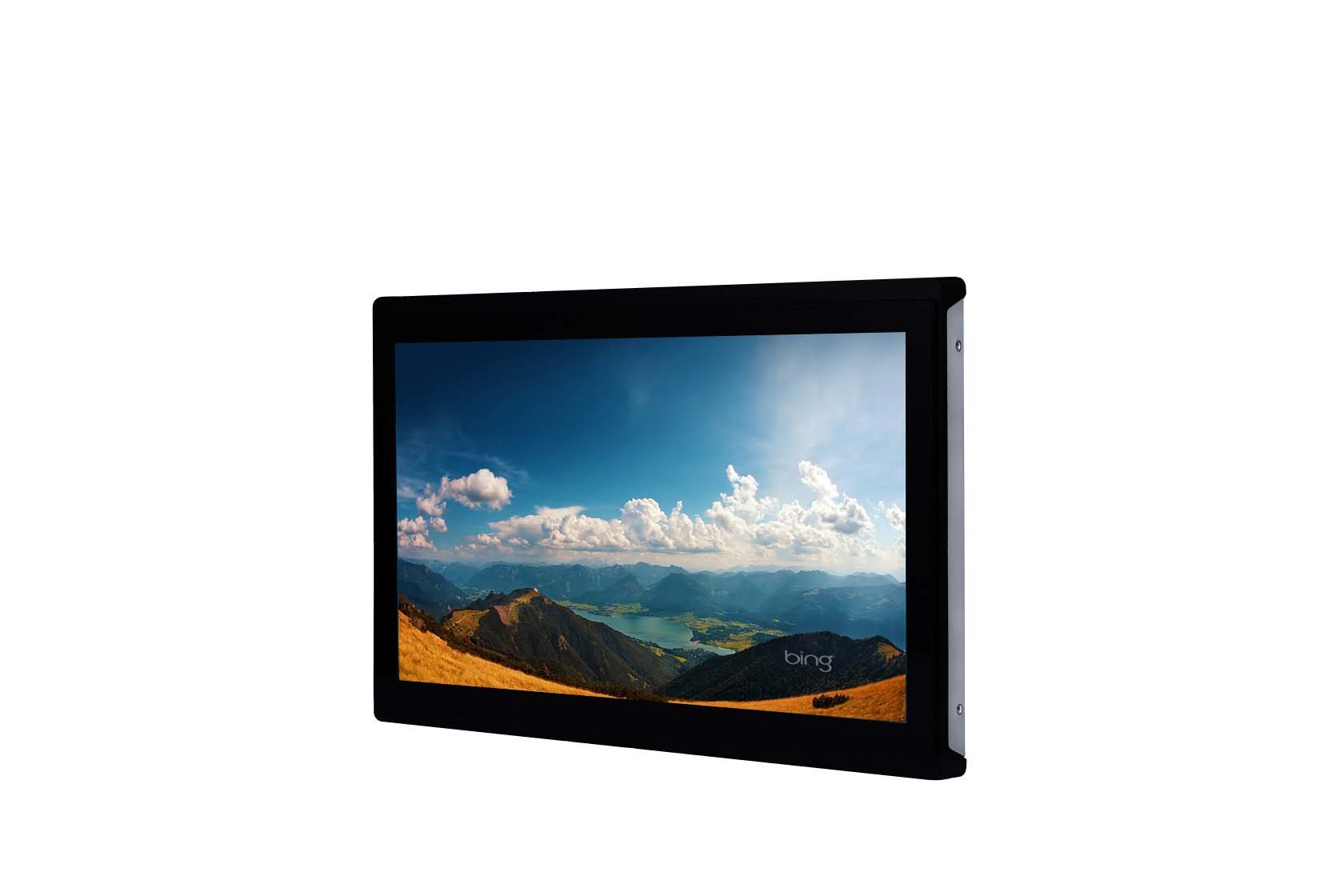

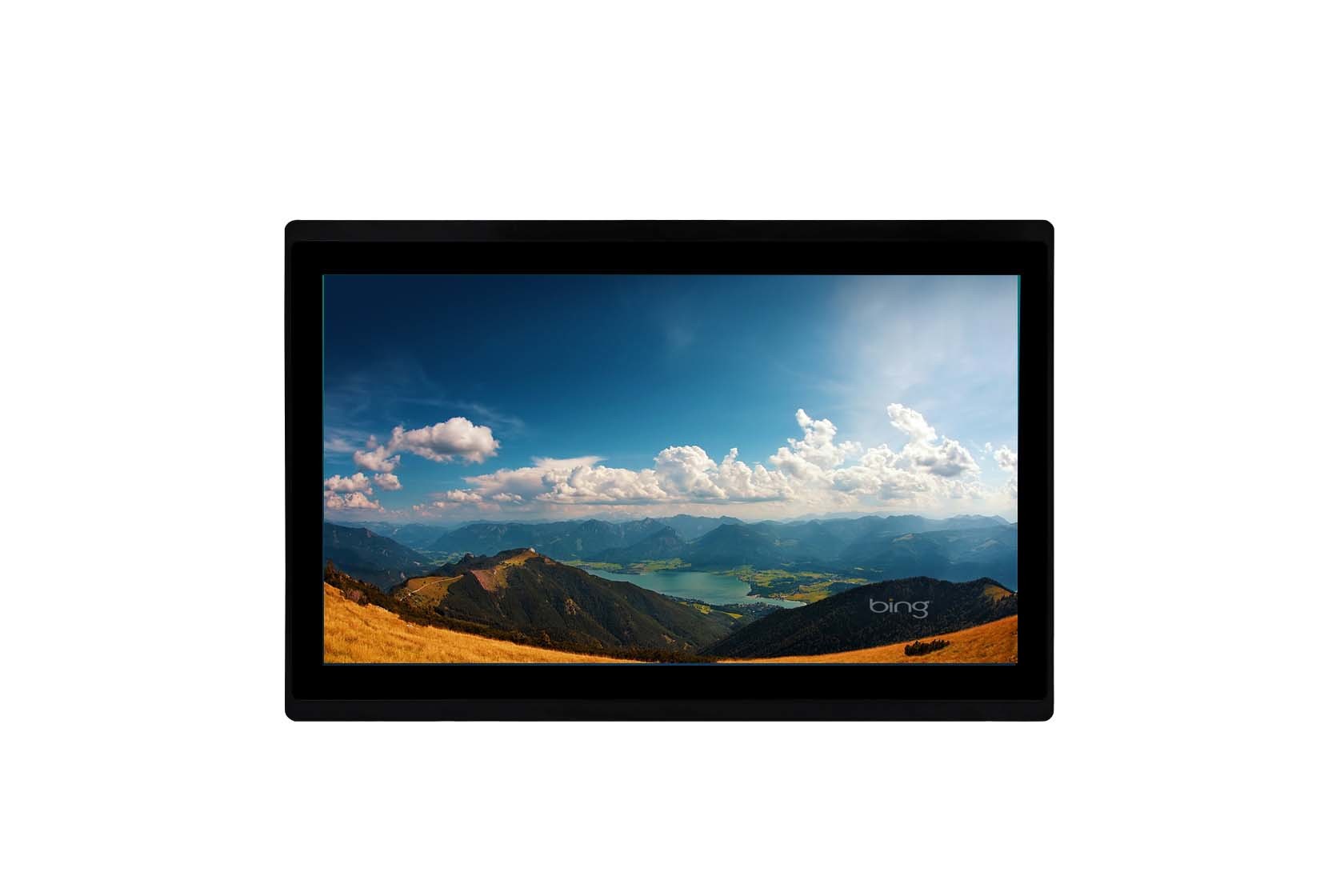

LYX156K20C is a high-performance embedded integrated touch screen
with the industrial Rockchip RK3568 (quad-core A55 main frequency
2.0 Ghz) CPU as the core. The product features a high-resolution
15.6-inch LED LCD display (resolution 1920 * 1080) and a 10-point
capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232,
RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial
automation control, HMI, small and medium-sized medical analyzer
and other industry applications.
Specifications:
CPU:RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
RAM: DDR 2GB (Selectable 4Gb)
ROM: 32Gb(Selectable 64Gb)
Operating System: Linux 4.19
GPU: Mali-G52 1-Core-2EE
Luminance:300 cd/ m²(Select a 450cd / m² s)
Material quality:Plastic face frame, metal back cover
Size:15.6 Inch
Resolving power:1920 * 1080
Touch form:Capactive 10 touch
Luminance:300 cd/ m²
Angle of view:Full perspective
Way to stall:Flat, outer, embedded
Dimension:383 * 249 * 51mm
Power interface:3 PIN*2.54mm terminal DC24V provides power supply
Power input:12-30V Recommended value of 24V
Working temperature:-10℃ ~ 60℃
Storage temperature:-20℃ ~ 70℃
Product Performance:
| Performance | Detail |
System
| CPU processor | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| Operating System | Android11.0/Ubuntu18.04/Linux 4.19 |
| Running memory | 2GB/4GB |
| EMMC | 16GB/32GB/64GB/128GB |
| GPU | Mali-G52 1-Core-2EE |
Display | Size | 15.6 Inch |
| Resolving power | 1920 * 1080 |
| Touch form | Capactive 10 touch |
| Luminance | 300 cd/ m² |
| Angle of view | Full perspective |
Material | Way to stall | Flat, outer, embedded |
| Dimension | 383 * 249 * 51mm |
| IP protection grade | Industrial grade IP65 dustproof and water proof (operating face) |
Power | Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12-30V Recommended value of 24V |
Environmental Characteristics | Working temperature | -10℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ |
| Serial port | 2 RS232,2 RS232 / RS485 switch; 6-Road TTL serial port (reuse with serial port) |
| Audio interface | 1-way MIC interface |
| Gigabit Ethernet interface | 1 Route 10 / 100 / 1000 Mbps Ethernet port |
| HDMI interface | 1-Way HDMI output, up to 3840 * 2160 resolution |
| TF | 1-Route TF card interface |
| SIM card | 1 Standard drawer-type interface with reserved eSIM interface |
| RTC | 1 Built-in supercapacitor |
| WIFI/BT | 2.4G WIFI / BT4.2 |
| GPS | The GPS function 4G module should be replaced |
| 4G interface | Expand the miniPCIE 4G module |
| GPIO | 4-way GPIO, IO direction is input and output configurable, and IO
level is 5.0V； |
| USB2.0 | 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB
2.0,1 built-in row pin (USB 2.0) |
| USB3.0 | 1 Vertical USB 3.0 (switch through dial switch) |
