Product Description

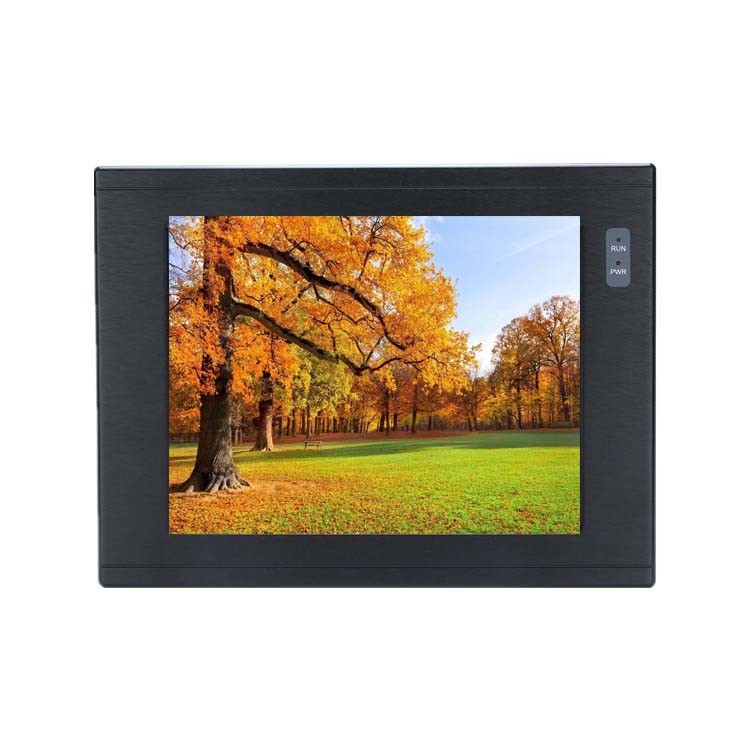

10.4 inch Waterproof Touch Screen 1024 * 768 Embedded Industrial
Panel PC Highlight screen Monitors
LYA104K20I-TX-BT is an industrial-grade high-performance embedded integrated touch
screen with the chip RK3568 (quad-core A55 main frequency 2.0 Ghz)
CPU as the core. The product features a high-resolution 10.4-inch
LED LCD display (with a resolution of 1024 * 768). Support for USB,
Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It
is suitable for industrial automation control, man-machine
interface, small and medium-sized medical analyzer and other
industry applications. Built-alone 0.8T NPU can be used for
lightweight AI applications.
Product Feature
CPU processor:RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Operating System:Android11.0
Running memory:2GB/4GB
EMMC:16GB/32GB/64GB/128GB
GPU:Mali-G52 1-Core-2EE
Size:10.4 Inch
Resolving power:1024 * 768
Luminance:600 cd/ m²
Dimension:W293mm×H222mm×54mm
IP protection grade:Industrial grade IP64 (operating face)
Power interface:3 PIN*2.54mm terminal DC24V provides power supply
Power input:12V-30V(Recommended value 24V)
Product Performance:
| Performance | Detail |
System | CPU processor | RK3568 / Cortex A55 4 core main frequency at 2.0GHZ |
| Operating System | Android11.0 |
| Running memory | 2GB/4GB |
| EMMC | 16GB/32GB/64GB/128GB |
| GPU | Mali-G52 1-Core-2EE |
Display | Size | 10.4 Inch |
| Resolving power | 1024 * 768 |
| Touch form | No touch |
| Luminance | 600 cd/ m² |
| Angle of view | Full perspective |
Material | Material quality | Aluminum alloy panel, metal rear cover |
| Way to stall | Embedded installation |
| Dimension | W293mm×H222mm×54mm |
| IP protection grade | Industrial grade IP64 (operating face) |
Power | Power interface | 3 PIN*2.54mm terminal DC24V provides power supply |
| Power input | 12V-30V(Recommended value 24V) |
Environmental Characteristics | Working temperature | -20℃ ~ 70℃ |
| Storage temperature | -20℃ ~ 70℃ |
| Operating humidity | 5-90 RH% |
| Serial port | 3 RS232,2 RS232 / RS485 / CAN switch; 6-way TTL serial port (reuse with serial port) |
| Audio interface | Ear integrated interface |
| Gigabit Ethernet interface | 1 Route 10 / 100 / 1000 Mbps Ethernet port |
| HDMI interface | 1-Way HDMI output, up to 3840 * 2160 resolution |
| TF | 1-Route TF card interface |
| SIM | 1 Standard drawer-type interface with reserved eSIM interface |
| RTC | 1 Built-in supercapacitor |
| WIFI/BT | 2.4G WIFI / BT4.2 |
| GPS | The GPS function 4G module should be replaced |
| 4G | Expand mini PCIE 4G module |
| GPIO | 4 input and output: 2 optical coupling input, 2 relay dry contact
output; |
| USB2.0 | 1 Vertical plug interface USB 2.0,4 horizontal plug interface USB
2.0,1 built-in row pin (USB 2.0) |
| USB3.0 | 1 Vertical USB 3.0 (switch through dial switch) |
